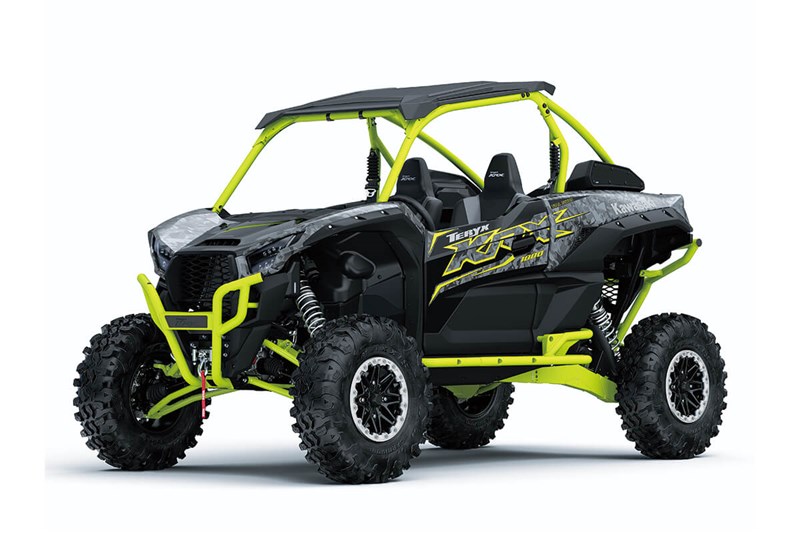

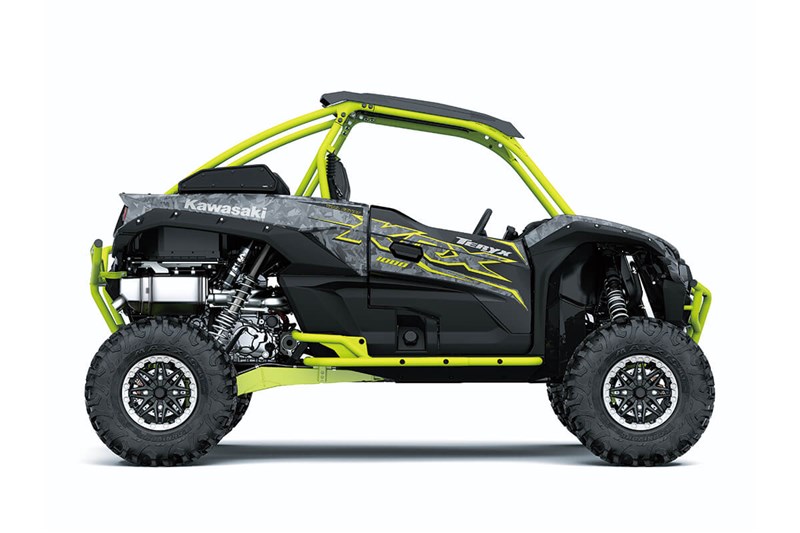

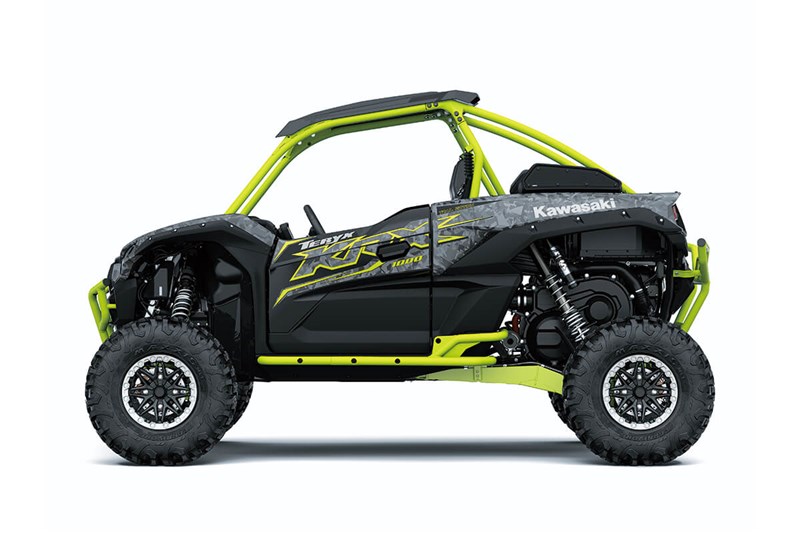

2022 Kawasaki TERYX KRX® 1000 TRAIL EDITION

2022 Kawasaki TERYX KRX® 1000 TRAIL EDITION
Fragment Camo Gray
MSRP: $25,699.00
Manufacturer: Kawasaki
Condition: New

Specifications

POWER

Engine
4-stroke, DOHC, 8-valve parallel-twin, liquid cooled
Displacement
999cc
Bore x Stroke
92.0 x 75.1 mm
Compression Ratio
11.5:1
Maximum Torque
76.7 lb-ft @ 7000 rpm
Fuel System
DFI with two 50mm throttle bodies
Ignition
TCBI with electronic advance
Starting System
Electric
Transmission
Automatic CVT with centrifugal clutch (H,L,N,R)
Final Drive
Selectable 2WD/4WD with locking front differential, shaft
Engine Braking
Yes


CAPABILITY

Front Suspension / Wheel Travel
Double wishbone, FOX 2.5 PODIUM LSC shocks with piggyback reservoir, fully adjustable preload, and 24-position adjustable compression damping/18.6 in.
Rear Suspension / Wheel Travel
4-link trailing-arm rear suspension, FOX 2.5 PODIUM LSC shocks with piggyback reservoir, fully adjustable preload, and 24-position adjustable compression damping/21.1 in.
Front Tires
MAXXIS Carnivore 31 x 10.00R15 8PR
Rear Tires
MAXXIS Carnivore 31 x 10.00R15 8PR
Steering
Electric Power Steering (EPS) / rack-and-pinion
Front Brakes
Dual hydraulic discs with two-piston calipers
Rear Brakes
Dual hydraulic discs with single-piston calipers
Ground Clearance
14.2 in (max), 13.6 in (std)
Fuel Capacity
10.6 gal
Turning Radius
20.3 ft
Cargo Bed Dimensions (LxWxH)
14.6 x 33.1 x 9.1 in
Cargo Bed Capacity
351 lbs
Load Capacity
781 lbs
Seating Capacity
2
Towing Capacity
N/A
Lighting
(2) LED headlights, (2) LED taillights, LED stoplight


DETAILS

Frame
Ladder type, tubular steel
Overall Length
133.3 in
Overall Width
68.1 in
Overall Height
76.6 in
Curb Weight
2019.8 lbs (2022.0 CA)*
Wheelbase
98.8 in
Instruments
Multi-function digital meter with bar-style tachometer (2 display options), digital speedometer, bar-style fuel gauge, gear indicator (L, H, N, R), Power Mode, driving mode (2WD/4WD/4WD+Diff Lock) indicator, Economical Riding Indicator, clock, odometer, dual trip meters, hour meter, water temperature, digital battery gauge, bar-style CTV temperature, seatbelt warning lamp, oil warning lamp, engine check lamp, water temperature warning lamp, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, EPS warning lamp, and CVT belt warning lamp.
Wheel Type
Alloy with bead-lock wheels
Color Choices
Fragment Camo Gray
Warranty
6 months
Kawasaki Protection Plus™ (optional)
12, 24, or 36 months


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
